Parts Of a Sail Explained (Illustrated Beginners Guide)

Written by Sophia Roa in Sailboats Explained

Are you curious about sail mechanics and how they engage the wind? In this illustrated guide, we'll explain the various sail components and how they work together to propel a sailboat. From the head to the foot, the tack to the clew, we'll break down each part and give you a solid foundation to build on as you learn to trim sails and navigate the open sea.

A sail, which is a large piece of fabric that is attached to a long pole called the mast, uses the wind to pull a sailboat across the water. It has various parts, such as the head, tack, clew, luff, leech, foot, mainsail, jib, and batten. These components determine the shape and efficiency of the sail.

Let's break down all these terms and descriptions to understand how each component interacts with each other. So, whether you're a seasoned sailor or a beginner, you'll have a better grasp of sail trim and optimal performance on the water.


  • The primary parts of a mainsail include the head, tack, clew, luff, leech, and foot.
  • Some critical elements of the jib include the sheet, genoa, and headstay.
  • Asymmetrical spinnakers are designed for off-wind sailing and have a more rounded shape, while symmetrical spinnakers are used for downwind sailing and have a more traditional, triangular shape.
  • The most common fabrics used for making sails are traditional fabrics like cotton and flax, and modern fabrics such as polyester and nylon, Dacron, Mylar, and laminates.
  • Be sure to learn how to properly trim, reef, clean, flake, and store your sails for durability and optimal performance.

On this page:

  1. Parts of a Sail and Their Functions
  2. Mainsail Components
  3. Jib Components of a Sailboat
  4. Components of Spinnakers
  5. Sail Controls and Settings
  6. Sail Care and Maintenance
  7. Sail Materials and Construction

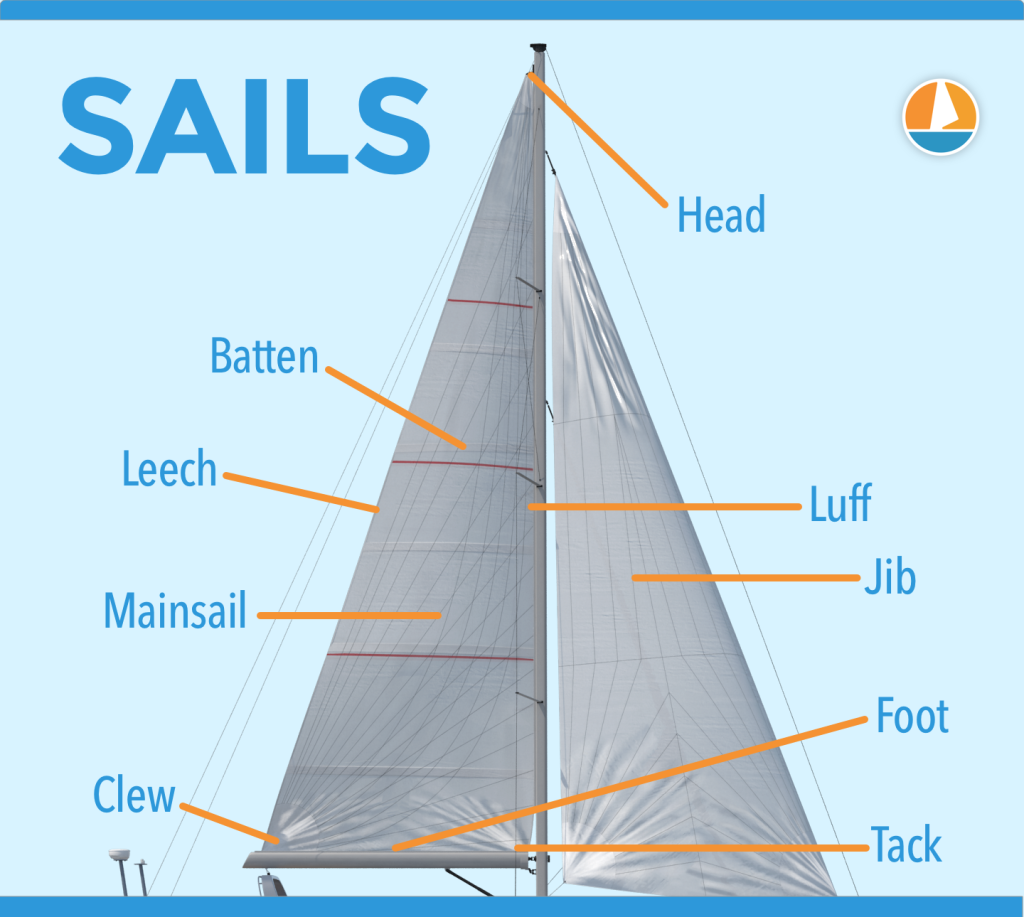

Parts of a Sail and Their Functions

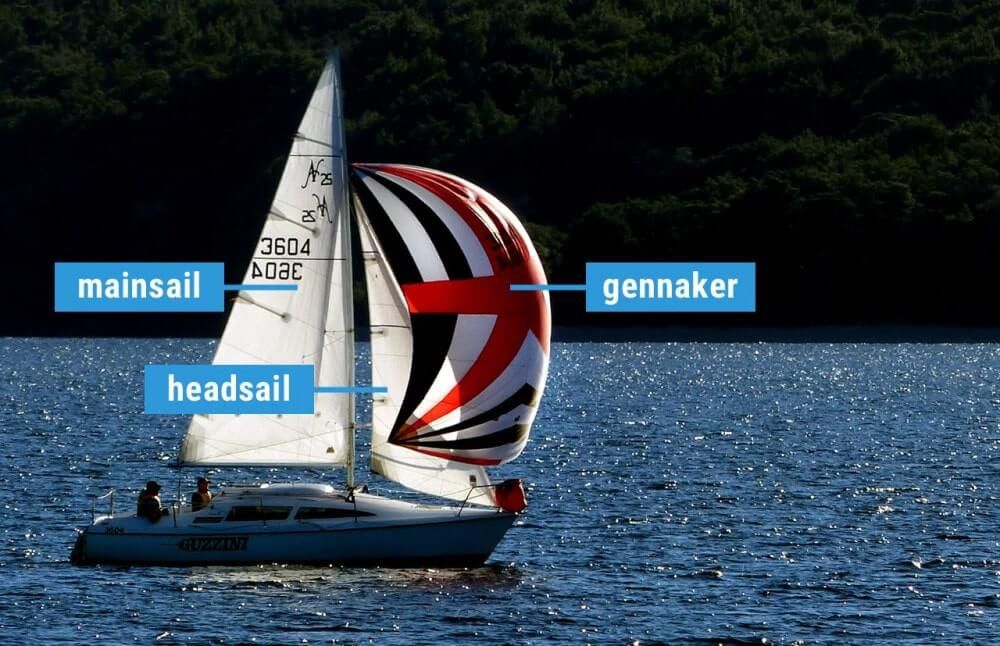

In this guide, we'll focus on the three main types of sails: Mainsail, Jib, and Spinnaker.

Mainsail is the primary sail on your boat

The mainsail is the largest sail on a sailboat and is typically attached to the mast and boom. It is found aft (rear) of the mast. It's attached to the boat through a track or sail slide, which allows it to move up and down.

Parts of the Mainsail Description
Head the very top of the sail that is attached to the mast
Foot the bottom edge of the sail that is attached to the boom
Luff the front, leading edge of the sail that runs along the mast
Leech the trailing edge of the sail that runs from the head to the clew
Tack the bottom front corner of the sail
Clew the bottom aft corner of the sail that is attached to the boom
Battens are thin, flat strips of material (such as fiberglass or wood) that are inserted into pockets in the sail to help it maintain its shape and prevent it from flapping in the wind
Reefing points are sets of small lines or ties that are used to reduce the size of the sail in high winds
Telltales are small pieces of ribbon or yarn that are attached to the sail to help the sailor determine the direction and strength of the wind
Sail numbers are numbers that are affixed to the sail to identify the boat in racing situations
Sail controls include lines or sheets that are used to control the shape and position of the sail, such as the mainsheet, outhaul, and cunningham

Jib is a triangular sail placed in front of the boat

The jib is a smaller sail that is attached to the bow of the boat and works in conjunction with the mainsail to control the direction and speed of the boat. It helps to improve the boat's handling and increase speed, working in tandem with the mainsail.

Parts of the Jib Description
Head the top of the sail that is attached to the forestay
Luff the leading edge of the sail that runs along the forestay
Foot the bottom edge of the sail that is attached to the deck or a furling drum
Leech the trailing edge of the sail that runs from the head to the clew
Clew the corner of the sail that is attached to the deck or a furling drum
Telltales are small pieces of ribbon or yarn that are attached to the sail to help the sailor determine the direction and strength of the wind
Jib sheets are lines that are used to control the position and trim of the sail
Furling drum a device that allows the jib to be rolled up and stored when not in use
Hanks are clips that are used to attach the jib to the forestay on boats that do not have a furling drum
Tack the bottom forward corner of the jib that is attached to the boat's bow

In some cases, larger jibs called genoas are used to capture more wind, thus increasing the boat's speed.

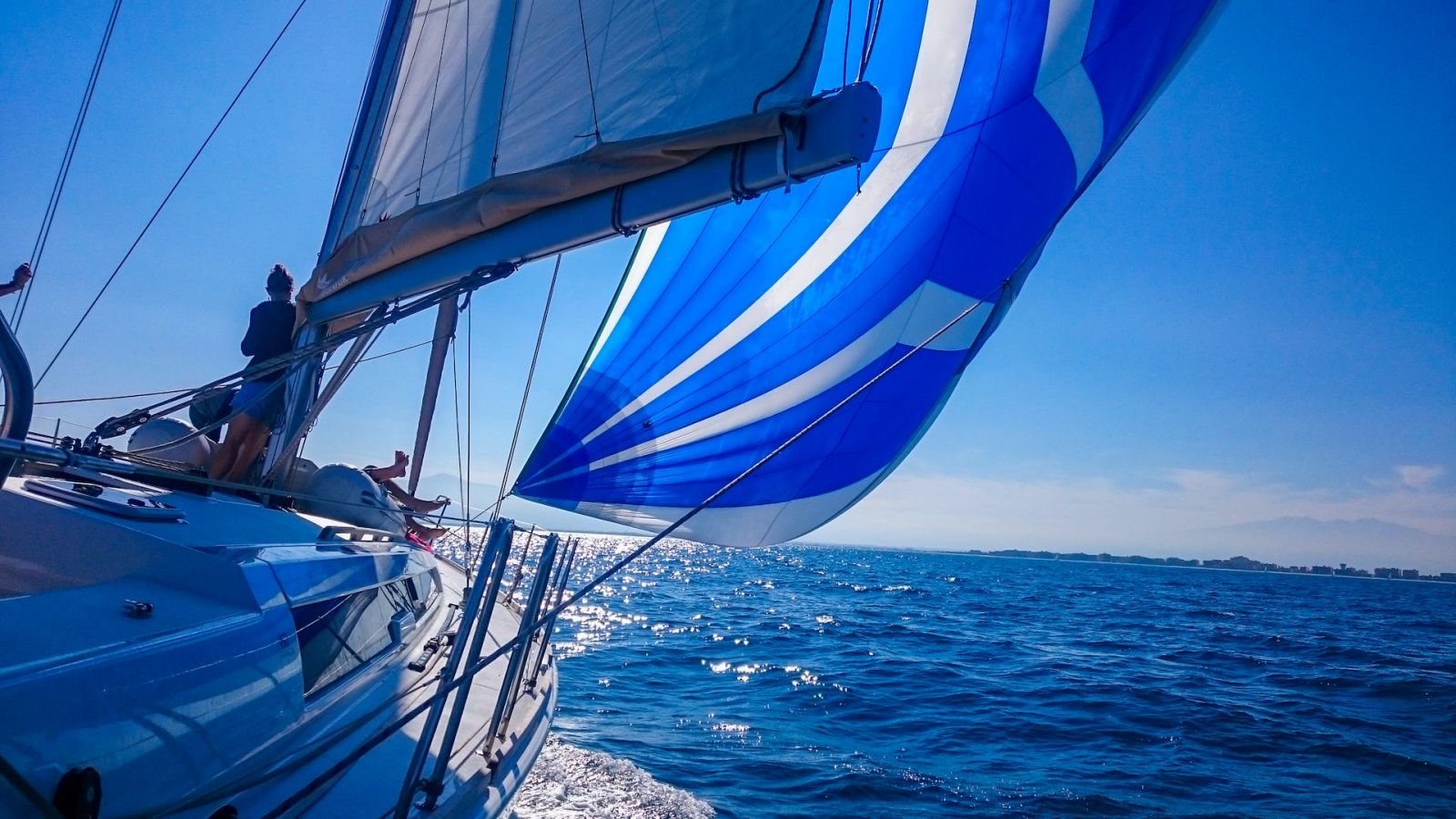

Spinnaker is designed for sailing downwind

The spinnaker is a large, colorful, and lightweight balloon-shaped sail designed for sailing downwind. It captures the wind from the rear, pushing the boat forward with added speed and stability.

Parts of the Spinnaker Description
Head the top of the sail that is attached to a spinnaker halyard
Luff the leading edge of the sail that runs along the spinnaker pole
Foot the bottom edge of the sail that is attached to the spinnaker tack line
Leech the trailing edge of the sail that runs from the head to the clew
Clew the corner of the sail that is attached to the spinnaker sheet
Spinnaker pole a long, horizontal pole that is attached to the mast and used to hold the spinnaker out from the boat
Guy a line that is attached to the spinnaker pole and used to control its position
Sheet a line that is attached to the clew of the spinnaker and used to control its position and trim
Tack line a line that is attached to the lower forward corner of the spinnaker and used to control its position
Spinnaker sock a device that is used to control the spinnaker when it is being raised or lowered

Mainsail Components

In this section, you'll find a comprehensive explanation of the primary components of a sail and their functions:

Head is the uppermost corner of a sail

The head of the sail refers to the uppermost corner where it connects to the top of the mast. Knowing the location of the head is essential, as it helps you identify the top of the sail and allows you to properly hoist and secure it in place.

Tack is the lower front corner of a sail

The tack is where the lower front corner connects to the base of the mast, or the boom. This important point helps you determine the sail's orientation and affects its overall shape and efficiency. By adjusting the tension at the tack, you can control your sail's performance and handling in various wind conditions.

Clew is the lower rear corner of a saisl

The clew is where the sheets attach to control the sail's angle to the wind. Adjusting the tension on the sheets can change the sail's shape and ultimately influence the boat's speed and direction. Becoming familiar with the clew will help improve your sailing skills and ensure smooth maneuvers on the water.

Luff is the front edge of the sail

The luff is the forward edge of the sail that runs along the mast. It's crucial to maintaining a tight and efficient sail shape. When sailing upwind, pay close attention to the luff, as it can provide valuable information about your sail's trim. A properly trimmed sail will have a smooth luff, allowing the boat to move efficiently against the wind.

Leech is the rear edge of the sail

The leech is opposite the luff. It plays a critical role in controlling the overall shape and efficiency of your sail. Watch the leech carefully while sailing, as excessive tension or looseness can negatively affect your sail's performance. Adjusting your sail's trim or using a device called a "boom vang" can help control the shape and tension of the leech.

Foot is the bottom edge of the sail

The foot is running between the tack and the clew. It helps control the shape and power of the sail by adjusting the tension along the boom. Ensure the foot is properly trimmed, as this can impact your boat's performance and speed. A well-adjusted foot helps your sail maintain its proper shape and operate at optimal efficiency while out on the water.

Jib Components of a Sailboat

In this section, we'll look at some critical elements of the jib: the sheet, genoa, and headstay.

Sheet is the line used to control the position and trim of the sail

The jib sheet is the line used to control the jib's angle in relation to the wind. You adjust the sheet to get the best possible sail trim, which greatly affects your boat's performance. The jib sheet typically runs from the jib's clew (the lower rear corner of the sail) through a block on the boat's deck, and back to the cockpit, where you can easily control it.

When adjusting the jib sheet, you want to find the perfect balance between letting the sail out too far, causing it to luff (flutter), and pulling it in too tightly, which can cause heeling or poor sail shape. Make small adjustments and observe how your boat responds to find the sweet spot.

Genoa is a larger jib used to capture more wind

A genoa is a larger version of a standard jib. It overlaps the mainsail, extending further aft, and provides a greater sail area for improved upwind performance. Genoas are categorized by the percentage of overlap with the mainsail. For example, a 130% genoa means that the sail's area is 30% larger than the area of a jib that would end at the mast.

Genoas are useful in light wind conditions, as their larger surface area helps your boat move faster. However, they can become difficult to manage in strong winds. You might need to reef (reduce the size) or swap to a smaller jib to maintain control.

Headstay provides a support structure for the jib

The headstay is a crucial part of your boat's standing rigging system. It is the cable or rod that connects the top of the mast (the masthead) to the bow of the boat. The headstay helps maintain the mast's stability and provides a support structure for the jib.

The tension in your headstay plays a significant role in the jib's sail shape. Proper headstay tension will create a smooth, even curve, allowing your jib to perform optimally. If the headstay is too tight, the sail may be too flat, reducing its power, whereas a loose headstay can result in a sagging, inefficient sail shape.

Components of Spinnakers

A spinnaker is a sail designed specifically for sailing off the wind, on courses between a reach and downwind. They are made of lightweight fabric, often brightly colored, and help maximize your sailing speed and performance.

Asymmetrical spinnakers are designed for off-wind sailing

Asymmetrical spinnakers are usually found on modern cruising and racing boats. They're designed for a broader range of wind angles and have a more forgiving shape, making them easier for you to handle. Key components of an asymmetrical spinnaker include:

  • Tack: This is the front, lower corner where the sail connects to the boat. A tack line is used to adjust the sail's position relative to the bow.
  • Head: The top corner of the sail, where it connects to the halyard to be hoisted up the mast.
  • Clew: The aft corner of the sail, connected to the sheet, allowing you to control the angle of the sail to catch the wind effectively.

You can find a step-by-step guide on how to rig and hoist an asymmetrical spinnaker here.

Symmetrical spinnakers are used for downwind sailing

Symmetrical spinnakers are more traditional and usually found on racing boats, where downwind performance is critical. These sails are shaped like a large parachute and are split into two identical halves. Key components of a symmetrical spinnaker include:

  • Head: Similar to the asymmetrical spinnaker, the head is the top corner connected to the halyard.
  • Clews: Unlike an asymmetrical spinnaker, a symmetrical spinnaker has two clews. Both are connected to sheets and guys, which help control the sail's shape and movement.
  • Spinnaker Pole: This is a horizontal pole that extends from the mast and is used to project the windward clew outwards and hold the sail open.

Handling a symmetrical spinnaker can be more challenging, as it requires precise teamwork and coordination. If you're new to sailing with this type of sail, don't hesitate to seek guidance from experienced sailors to improve your technique.

Sail Controls and Settings

In this section, we'll explore sail controls and settings, which are essential for beginners to understand for efficient sailing. We'll discuss trimming, and reefing, as sub-sections.

Trimming your sails for speed and stability

Trimming is the process of adjusting your sails to optimize them for the current wind conditions and desired direction. Proper sail trim is crucial for maximizing your boat's speed and stability. Here are some basic tips for sail trimming:

  • Pay attention to the telltales, which are small ribbons or yarn attached to the sails. They help you understand the airflow over your sails and indicate whether they're properly trimmed.
  • Use the sheets, which are lines attached to the clew of your sails, to adjust the angle of your sails relative to the wind.
  • In light winds, ease the sails slightly to create a more rounded shape for better lift. In stronger winds, flatten the sails to reduce drag and prevent excessive heeling.

Reefing your sails for control and balance

Reefing is the process of reducing the sail area to help maintain control and balance in stronger wind conditions. It's an essential skill to learn for your safety and the longevity of your sails. Follow these steps to reef your sails:

  1. Head into the wind to reduce pressure on the sails.
  2. Lower the halyard (the line that raises the sail) until the sail reaches the desired reefing point.
  3. Attach the sail's reefing cringle (reinforced eyelet) to the reefing hook or tack line.
  4. Tighten the new, lower clew (bottom corner) of the sail to the boom with the reef line.
  5. Raise the halyard back up to tension the reduced sail.

Sail Care and Maintenance

Take proper care of your sailboat to ensure that it remains in top condition. In this section, we will discuss the key aspects of sail care and maintenance, focusing on cleaning and storage.

Steps to clean your sails

Keeping your sail clean is crucial for its longevity and performance. Follow these simple steps to maintain a spotless sail:

  1. Rinse with fresh water after each use, paying extra attention to areas affected by saltwater, debris, and bird droppings.
  2. Use a soft-bristled brush and a mild detergent to gently scrub away dirt and stains. Avoid harsh chemicals or abrasive materials, as they may damage the fabric.
  3. Rinse again thoroughly, ensuring all soap is washed away.
  4. Spread your sail out to air-dry, avoiding direct sunlight, which may harm the fabric's UV protection.

Ways to store your sails

Sail storage is equally important for preserving the lifespan of your sail. Here are some tips for proper sail storage:

  • Fold or roll your sail: Avoid stuffing or crumpling your sail; instead, gently fold or roll it to minimize creases and wear on the fabric.
  • Protect from UV rays: UV exposure can significantly reduce the life of your sail. Store it in a cool, shaded area or use a UV-resistant sail cover when not in use.
  • Ventilation: Ensure your sail is stored in a well-ventilated area to prevent mildew and stale odors.
  • Lay flat or hang: If space allows, store your sail laid out flat or hanging vertically to reduce the risk of creasing and fabric damage.

Flaking your sails when not in use

Flaking is the process of neatly folding your sails when they're not in use, either on the boom or deck. This helps protect your sails from damage and prolongs their lifespan. Here's how to flake your sails:

  1. Lower the sail slowly, using the halyard while keeping some tension on it.
  2. As the sail comes down, gather and fold the sail material in an accordion-like pattern on top of the boom or deck.
  3. Secure the flaked sail with sail ties or a sail cover to prevent it from coming undone.

Sail Materials and Construction

Traditional fabrics used to make sails

In the early days of sailing, natural materials like cotton and flax were used to make sails. These fabrics were durable, breathable, and held up well in various weather conditions. However, they would eventually wear out and lose their shape due to the constant exposure to UV rays and seawater.

While traditional fabrics like cotton and flax were once commonly used for sailmaking, they have largely been replaced by synthetic materials like polyester and nylon due to their superior strength, durability, and resistance to mildew and rot. However, some sailors and sailmakers still use cotton and other natural fibers for certain applications, such as traditional sailmaking or historical recreations.

Modern fabrics used to make sails

Modern sail materials, such as Dacron, Mylar, and laminates, are more resilient and longer-lasting than traditional fabrics. These materials are lightweight, strong, and resistant to UV rays and water damage.

  • Dacron: Dacron is a popular material for sails because of its durability, UV resistance, and ease of maintenance. It's a type of polyester fabric that is often used for making cruising sails. Dacron offers excellent shape retention and resistance to stretch, making it ideal for both beginners and experienced sailors.

  • Laminate materials: Laminate sails are made by bonding multiple layers of materials like Mylar, polyester, and Kevlar. These sails offer better shape and performance compared to their fabric counterparts, making them popular among racers. However, they tend to be more delicate and may not be suitable for long-term cruising.

  • Mylar films: Mylar films are used in laminate sails for their excellent strength-to-weight ratio and shape retention. These films are often sandwiched between other materials, such as polyester or Kevlar, to enhance the sail's resistance to stretch and load handling. However, Mylar sails can be susceptible to delamination and abrasion, requiring extra care and regular inspection.

Sail stitching for shape and durability

Sail stitching is an essential aspect of sail construction, helping to maintain the sail's shape and durability. Various stitching techniques can be used, such as zigzag, straight, and triple-step sewing. The choice of stitching type depends on the sail's purpose and expected loads. In addition, using UV-resistant thread ensures that the stitching lasts longer under harsh sun exposure.
