Guide to Understanding Sail Rig Types (with Pictures)

Written by Shawn Buckles in Sailing Guides Updated: September 17, 2023

There are a lot of different sail rig types and it can be difficult to remember what's what. So I've come up with a system. Let me explain it in this article.

What are the different types of sail rig? The sail rig is determined by the number of masts and the layout and shape of sails. Most modern ships are fore-and-aft rigged, while old ships are square-rigged. Rigs with one mast are sloops and cutters. Ketches, yawls, brigs, and schooners have two masts. Barques have three masts. Rigs can contain up to seven masts.

'Yeah, that's a gaff brig, and that a Bermuda cutter' - If you don't know what this means (neither did I) and want to know what to call a two-masted ship with a square-rigged mainsail, this article is definitely for you.

Sailboat in front of NYC with Bermuda mainsail and Jib

On this page:

  1. More Info on Sail Rig Types
  2. Mast Configurations and Rig Types
  3. Rigs with One Mast
  4. Rigs with Two Masts
  5. Rigs with Three Masts
  6. Tall Ship
  7. Related Questions

This article is part 2 of my series on sails and rig types. Part 1 is all about the different types of sails. If you want to know everything there is to know about sails once and for all, I really recommend you read it. It gives a good overview of sail types and is easy to understand.

Also read:

The Ultimate Guide to Sail Types and Rigs (with Pictures)

More Info on Sail Rig Types

First of all, what is a sail rig? A sail rig is the way in which the sails are attached to the mast(s). In other words, it's the setup or configuration of the sailboat. The rig consists of the sail and mast hardware. The sail rig and sail type are both part of the sail plan. We usually use the sail rig type to refer to the type of boat.

Let's start by taking a look at the most commonly used modern sail rigs. Don't worry if you don't exactly understand what's going on. At the end of this article, you'll understand everything about rig types.

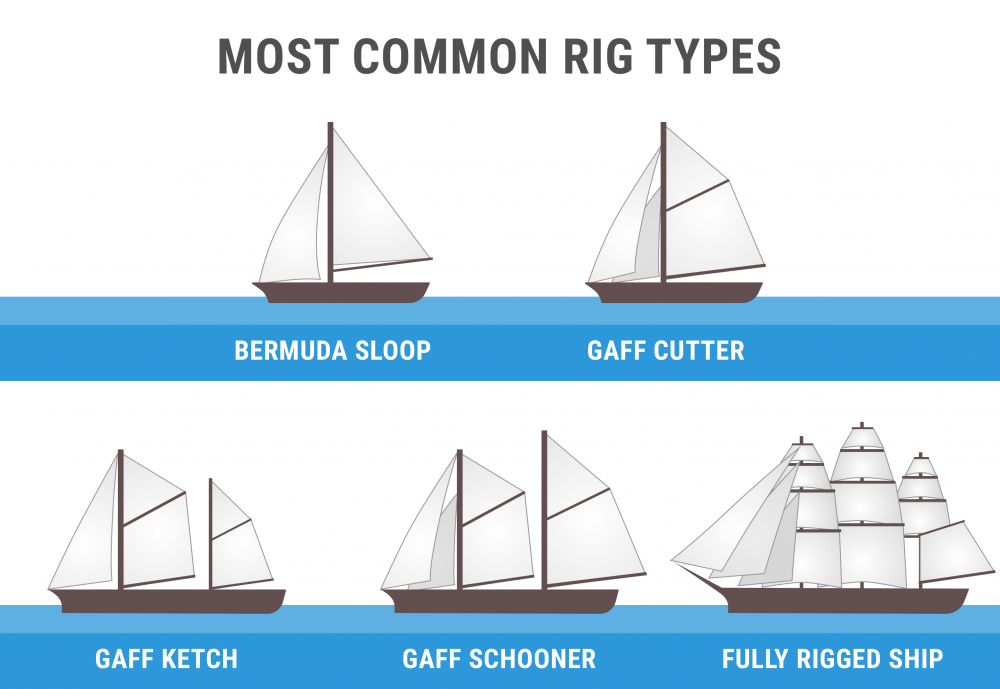

Diagram of most common rig types (Bermuda sloop, gaff cutter, gaff ketch, gaf schooner, full rigged ship)

The sail rig and sail plan are often used interchangeably. When we talk of the sail rig we usually mean the sail plan. Although they are not quite the same. A sail plan is the set of drawings by the naval architect that shows the different combinations of sails and how they are set up for different weather conditions. For example a light air sail plan, storm sail plan, and the working sail plan (which is used most of the time).

So let's take a look at the three things that make up the sail plan.

The 3 things that make up the sail plan

I want to do a quick recap of my previous article. A sail plan is made up of:

  • Mast configuration - refers to the number of masts and where they are placed
  • Sail type - refers to the sail shape and functionality
  • Rig type - refers to the way these sails are set up on your boat

I'll explore the most common rig types in detail later in this post. I've also added pictures to learn to recognize them more easily. (Click here to skip to the section with pictures).

How to recognize the sail plan?

So how do you know what kind of boat you're dealing with? If you want to determine what the rig type of a boat is, you need to look at these three things:

  1. Check the number of masts, and how they are set up.
  2. You look at the type of sails used (the shape of the sails, how many there are, and what functionality they have).
  3. And you have to determine the rig type, which means the way the sails are set up.

Below I'll explain each of these factors in more detail.

The most common rig types on sailboats

To give you an idea of the most-used sail rigs, I'll quickly summarize some sail plans below and mention the three things that make up their sail plan.

  • Bermuda sloop - one mast, one mainsail, one headsail, fore-and-aft rigged
  • Gaff cutter - one mast, one mainsail, two staysails, fore-and-aft rigged
  • Gaff schooner - two-masted (foremast), two mainsails, staysails, fore-and-aft rigged
  • Gaff ketch - two-masted (mizzen), two mainsails, staysails, fore-and-aft rigged
  • Full-rigged ship or tall ship - three or more masts, mainsail on each mast, staysails, square-rigged

The first word is the shape and rigging of the mainsail. So this is the way the sail is attached to the mast. I'll go into this later on. The second word refers to the mast setup and amount of sails used.

Most sailboats are Bermuda sloops. Gaff-rigged sails are mostly found on older, classic boats. Square-rigged sails are generally not used anymore.

But first I want to discuss the three factors that make up the sail plan in more detail.

Mast Configurations and Rig Types

Ways to rig sails

There are basically two ways to rig sails:

  • From side to side, called Square-rigged sails - the classic pirate sails
  • From front to back, called Fore-and-aft rigged sails - the modern sail rig

Almost all boats are fore-and-aft rigged nowadays.

Square sails are good for running downwind, but they're pretty useless when you're on an upwind tack. These sails were used on Viking longships, for example. Their boats were quicker downwind than the boats with fore-and-aft rigged sails, but they didn't handle as well.

The Arabs first used fore-and-aft rigged sails, making them quicker in difficult wind conditions.

Quick recap from part 1: the reason most boats are fore-and-aft rigged today is the increased maneuverability of this configuration. A square-rigged ship is only good for downwind runs, but a fore-and-aft rigged ship can sail close to the wind, using the lift to move forward.

The way the sails are attached to the mast determines the shape of the sail. The square-rigged sails are always attached the same way to the mast. The fore-and-aft rig, however, has a lot of variations.

The three main sail rigs are:

  1. Bermuda rig - most used - has a three-sided (triangular) mainsail
  2. Gaff rig - has a four-sided mainsail, the head of the mainsail is guided by a gaff
  3. Lateen rig - has a three-sided (triangular) mainsail on a long yard

The Bermuda is the most used, the gaff is a bit old-fashioned, and the lateen rig is outdated (about a thousand years). Lateen rigs were used by the Moors. The Bermuda rig is actually based on the Lateen rig (the Dutch got inspired by the Moors).

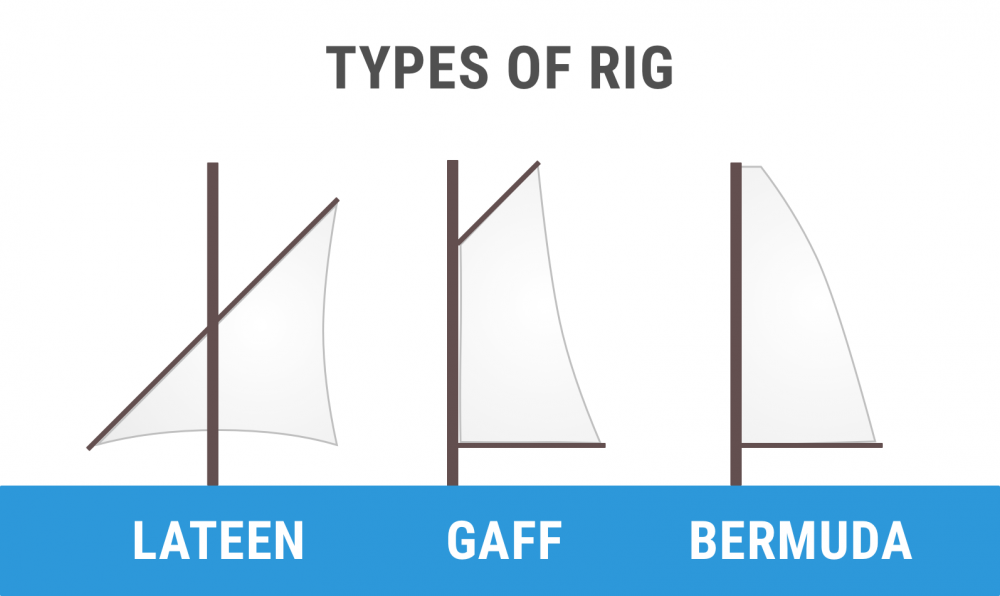

Diagram of lateen, gaff, and bermuda rig

Other rig types that are not very common anymore are:

  1. Junk rig - has horizontal battens to control the sail
  2. Gunter rig
  3. Settee rig - Lateen with the front corner cut off
  4. Crabclaw rig

Mast configuration

Okay, we know the shape of the mainsail. Now it's time to take a look at the mast configuration. The first thing is the number of masts:

  1. one-masted boats
  2. two-masted boats
  3. three-masted boats
  4. four masts or up
  5. full or ship-rigged boats - also called 'ships' or 'tall ships'

I've briefly mentioned the one and two mast configurations in part 1 of this article. In this part, I'll also go over the three-masted configurations, and the tall ships as well.

A boat with one mast has a straightforward configuration because there's just one mast. You can choose to carry more sails or less, but that's about it.

A boat with two masts or more gets interesting. When you add a mast, it means you have to decide where to put the extra mast: in front, or in back of the mainmast. You can also choose whether or not the extra mast will carry an extra mainsail. The placement and size of the extra mast are important in determining what kind of boat we're dealing with. So you start by locating the largest mast, which is always the mainmast.

From front to back: the first mast is called the foremast. The middle mast is called the mainmast. And the rear mast is called the mizzenmast.

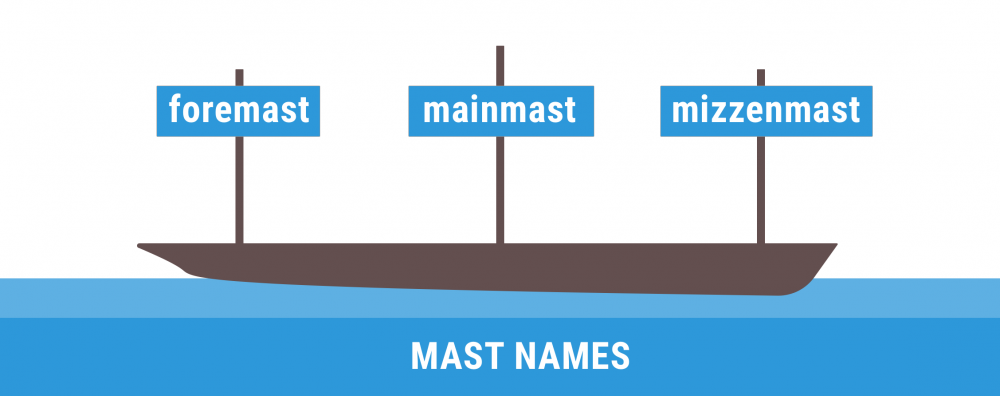

Diagram of different mast names (foremast, mainmast, mizzenmast)

What is the mizzenmast? The mizzenmast is the aft-most (rear) mast on a sailboat with three or more masts or the mast behind the mainmast on a boat with two masts. The mizzenmast carries the mizzen sail. On a two-masted boat, the mizzenmast is always (slightly) smaller than the mainmast.

What is the purpose of the mizzen sail? The mizzen sail provides more sail area and flexibility in sail plan. It can be used as a big wind rudder, helping the sailor to have more control over the stern of the ship. It pushes the stern away from the wind and forces the bow in the opposite way. This may help to bring the bow into the wind when at anchor.

I always look at the number of masts first, because this is the easiest to spot. So to make this stuff more easy to understand, I've divided up the rig types based on the number of masts below.

Why would you want more masts and sail anyways?

Good question. The biggest advantage of two masts compared to one (let's say a ketch compared to a sloop), is that it allows you to use multiple smaller sails to get the same sail area. It also allows for shorter masts.

This means you reduce the stress on the rigging and the masts, which makes the ketch rig safer and less prone to wear and tear. It also doesn't capsize as quickly. So there are a couple of real advantages of a ketch rig over a sloop rig.

Rigs with One Mast

In the case of one mast, we look at the number of sails it carries.

Boats with one mast can have either one sail, two sails, or three or more sails.

Most single-masted boats are sloops, which means one mast with two sails (mainsail + headsail). The extra sail increases maneuverability. The mainsail gives you control over the stern, while the headsail gives you control over the bow.

Sailor tip: you steer a boat using its sails, not using its rudder.

The one-masted rigs are:

  1. Cat - one mast, one sail
  2. Sloop - one mast, two sails
  3. Cutter - one mast, three or more sails

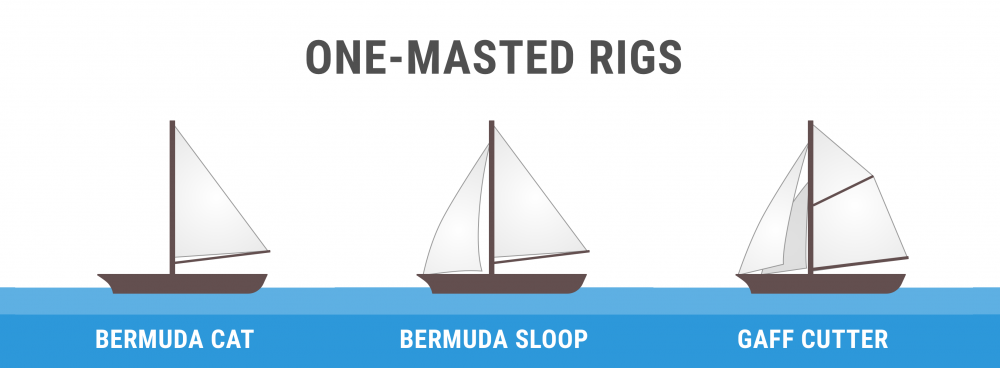

Diagram of one-masted rigs (bermuda cat, bermuda sloop, gaff cutter)

Cat

The cat is the simplest sail plan and has one mast with one sail. It's easy to handle alone, so it's very popular as a fishing boat. Most (very) small sailboats are catboats, like the Sunfish, and many Laser varieties. But it has a limited sail area and doesn't give you the control and options you have with more sails.

Sloop

The most common sail plan is the sloop. It has one mast and two sails: the main and headsail. Most sloops have a Bermuda mainsail. It's one of the best racing rigs because it's able to sail very close to the wind (also called 'weatherly'). It's one of the fastest rig types for upwind sailing.

It's a simple sail plan that allows for high performance, and you can sail it short-handed. That's why most sailboats you see today are (Bermuda) sloops.

This rig is also called the Marconi rig, and it was developed by a Dutch Bermudian (or a Bermudian Dutchman) - someone from Holland who lived on Bermuda.

Cutter

A cutter has three or more sails. Usually, the sail plan looks a lot like the sloop, but it has three headsails instead of one. Naval cutters can carry up to 6 sails.

Cutters have larger sail area, so they are better in light air. The partition of the sail area into more smaller sails give you more control in heavier winds as well. Cutters are considered better for bluewater sailing than sloops (although sloops will do fine also). But the additional sails just give you a bit more to play with.

Rigs with Two Masts

Two-masted boats can have an extra mast in front or behind the mainmast. If the extra mast is behind (aft of) the mainmast, it's called a mizzenmast. If it's in front of the mainmast, it's called a foremast.

If you look at a boat with two masts and it has a foremast, it's most likely either a schooner or a brig. It's easy to recognize a foremast: the foremast is smaller than the aft mast.

If the aft mast is smaller than the front mast, it is a sail plan with a mizzenmast. That means the extra mast has been placed at the back of the boat. In this case, the front mast isn't the foremast, but the mainmast. Boats with two masts that have a mizzenmast are most likely a yawl or ketch.

The two-masted rigs are:

  1. Lugger - two masts (mizzen), with lugsail (a cross between gaff rig and lateen rig) on both masts
  2. Yawl - two masts (mizzen), fore-and-aft rigged on both masts. Main mast is much taller than mizzen. Mizzen without a mainsail.
  3. Ketch - two masts (mizzen), fore-and-aft rigged on both masts. Main mast with only slightly smaller mizzen. Mizzen has mainsail.
  4. Schooner - two masts (foremast), generally gaff rig on both masts. Main mast with only slightly smaller foremast. Sometimes build with three masts, up to seven in the age of sail.
  5. Bilander - two masts (foremast). Has a lateen-rigged mainsail and square-rigged sails on the foremast and topsails.
  6. Brig - two masts (foremast), partially square-rigged. The main mast carries small lateen-rigged sail.

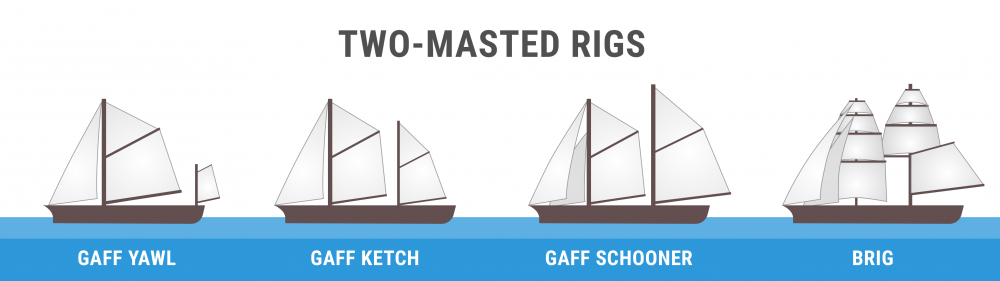

Diagram of two-masted rigs (gaff yawl, gaff ketch, gaff schooner, and brig)

Yawl

The yawl has two masts that are fore-and-aft rigged and a mizzenmast. The mizzenmast is much shorter than the mainmast, and it doesn't carry a mainsail. The mizzenmast is located aft of the rudder and is mainly used to increase helm balance.

Ketch

A ketch has two masts that are fore-and-aft rigged. The extra mast is a mizzenmast. It's nearly as tall as the mainmast and carries a mainsail. Usually, the mainsails of the ketch are gaff-rigged, but there are Bermuda-rigged ketches too. The mizzenmast is located in front of the rudder instead of aft, as on the yawl.

The function of the ketch's mizzen sail is different from that of the yawl. It's actually used to drive the boat forward, and the mizzen sail, together with the headsail, are sufficient to sail the ketch. The mizzen sail on a yawl can't really drive the boat forward.

Schooner

Schooners have two masts that are fore-and-aft rigged. The extra mast is a foremast which is generally smaller than the mainmast, but it does carry a mainsail. Schooners are also built with a lot more masts, up to seven (not anymore). The schooner's mainsails are generally gaff-rigged.

The schooner is easy to sail but not very fast. It handles easier than a sloop, except for upwind, and it's only because of better technology that sloops are now more popular than the schooner.

Brig

The brig has two masts. The foremast is always square-rigged. The mainmast can be square-rigged or is partially square-rigged. Some brigs carry a lateen mainsail on the mainmast, with square-rigged topsails.

Some variations on the brig are:

Brigantine - two masts (foremast), partially square-rigged. Mainmast carries no square-rigged mainsail.

Hermaphrodite brig - also called half brig or schooner brig. Has two masts (foremast), partially square-rigged. Mainmast carries a gaff rig mainsail and topsail, making it half schooner.

Rigs with Three Masts

Three-masted boats are mostly barques or schooners. Sometimes sail plans with two masts are used with more masts.

The three-masted rigs are:

  1. Barque - three masts, fore, and mainmast are square-rigged, the mizzenmast is usually gaff-rigged. All masts carry mainsail.
  2. Barquentine - three masts, foremast is square-rigged, the main and mizzenmast are fore-and-aft rigged. Also called the schooner barque.
  3. Polacca - three masts, foremast is square-rigged, the main and mizzenmast are lateen-rigged.
  4. Xebec - three masts, all masts are lateen-rigged.

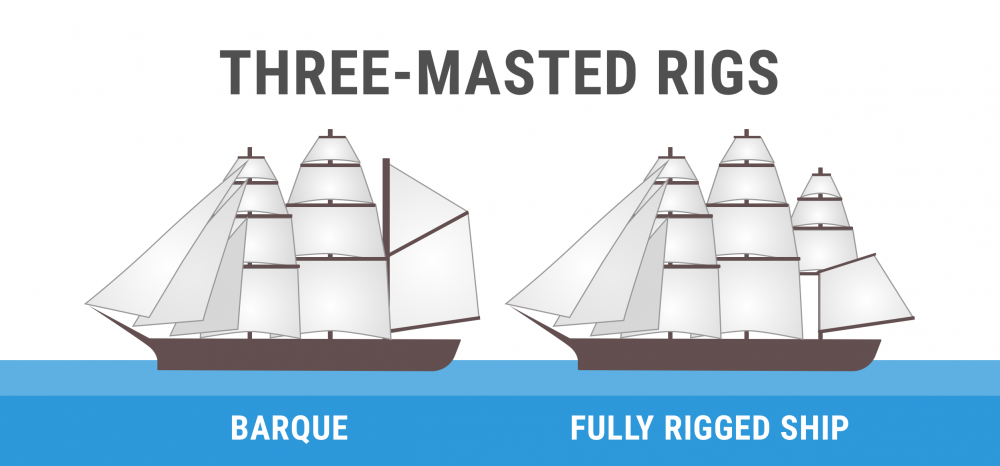

Diagram of three-masted rigs (barque, full rigged ship)

Barques

A barque has three or four masts. The fore and mainmast are square-rigged, and the mizzen fore-and-aft, usually gaff-rigged. Carries a mainsail on each mast, but the mainsail shape differs per mast (square or gaff). Barques were built with up to five masts. Four-masted barques were quite common.

Barques were a good alternative to full-rigged ships because they require a lot fewer sailors. But they were also slower. Very popular rig for ocean crossings, so a great rig for merchants who travel long distances and don't want 30 - 50 sailors to run their ship.

Barquentine

The barquentine usually has three masts. The foremast is square-rigged and the main and mizzenmast fore-and-aft. The rear masts are usually gaff-rigged.

Faster than a barque or a schooner, but the performance is worse than both.

Polacca

The polacca or polacre rig has three masts with a square-rigged foremast. The main and mizzenmast are lateen-rigged. Beautiful boat to see. Polacca literally means 'Polish' (it's Italian). It was a popular rig type in the Mediterranean in the 17th century. It looks like the xebec, which has three lateen-rigged masts.

Fun fact: polaccas were used by a Dutch sailor-turned-Turkish-pirate (called Murat Reis).

Xebec

The xebec is a Mediterranean trading ship with three masts. All masts are lateen-rigged. I couldn't find any surviving xebecs, only models and paintings. So I guess this rig is outdated a long time.

Tall Ship

A boat with three or more masts that all carry square-rigged sails is called a ship, a tall ship, or a full-rigged ship. So it's at this point that we start calling boats 'ships'. It has nothing to do with size but with the type of rigging.

More sails mean less stress on all of them. These ships use a lot of sails to distribute the forces, which reduces the stress on the rigging and the masts. Square sails mean double the sail area in comparison to triangular sails.

They are quite fast for their size, and they could outrun most sloops and schooners (schooners were relatively a lot heavier). The reason is that tall ships could be a lot longer than sloops, giving them a lot of extra hull speed. Sloops couldn't be as large because there weren't strong enough materials available. Try making a single triangular sail with a sail area of over 500 sq. ft. from linen.

So a lot of smaller sails made sense. You could have a large ship with a good maximum hull speed, without your sails ripping apart with every gust of wind.

But you need A LOT of sailors to sail a tall ship: about 30 sailors in total to ie. reef down sails and operate the ship. That's really a lot.

Tall ships are used nowadays for racing, with the popular tall ship races traveling the world. Every four years I go and check them out when they are at Harlingen (which is very close to where I live).

Check out the amazing ships in this video of the tall ship races last year near my hometown. (The event was organized by friends of mine).

What is the difference between a schooner and a sloop? A schooner has two masts, whereas the sloop only has one. The schooner carries more sails, with a mainsail on both masts. Also, sloops are usually Bermuda-rigged, whereas schooners are usually gaff-rigged. Most schooners also carry one or two additional headsails, in contrast to the single jib of the sloop.

What do you call a two-masted sailboat? A two-masted sailboat is most likely a yawl, ketch, schooner, or brig. To determine which one it is you have to locate the mainmast (the tallest). At the rear: schooner or brig. In front: yawl or ketch. Brigs have a square-rigged foremast, schooners don't. Ketches carry a mainsail on the rear mast; yawls don't.

What is a sloop rig? A sloop rig is a sailboat with one mast and two sails: a mainsail and headsail. It's a simple sail plan that handles well and offers good upwind performance. The sloop rig can be sailed shorthanded and is able to sail very close to the wind, making it very popular. Most recreational sailboats use a sloop rig.

What is the difference between a ketch and a yawl? The most important difference between a ketch and a yawl are the position and height of the mizzenmast. The mizzenmast on a yawl is located aft of the rudder, is shorter than the mainmast and doesn't carry a mainsail. On a ketch, it's nearly as long as the mainmast and carries a mainsail.


Did you find the answer to your specific question?
👍 72 👎 28

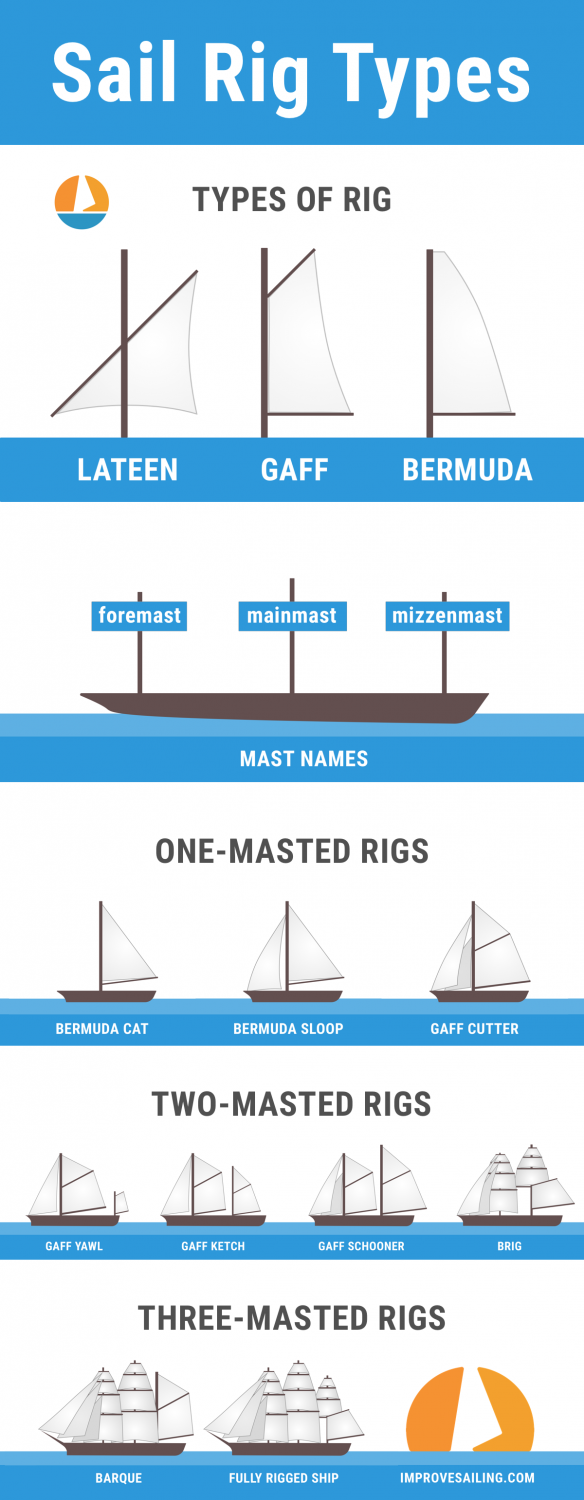

Pinterest image for Guide to Understanding Sail Rig Types (with Pictures)
